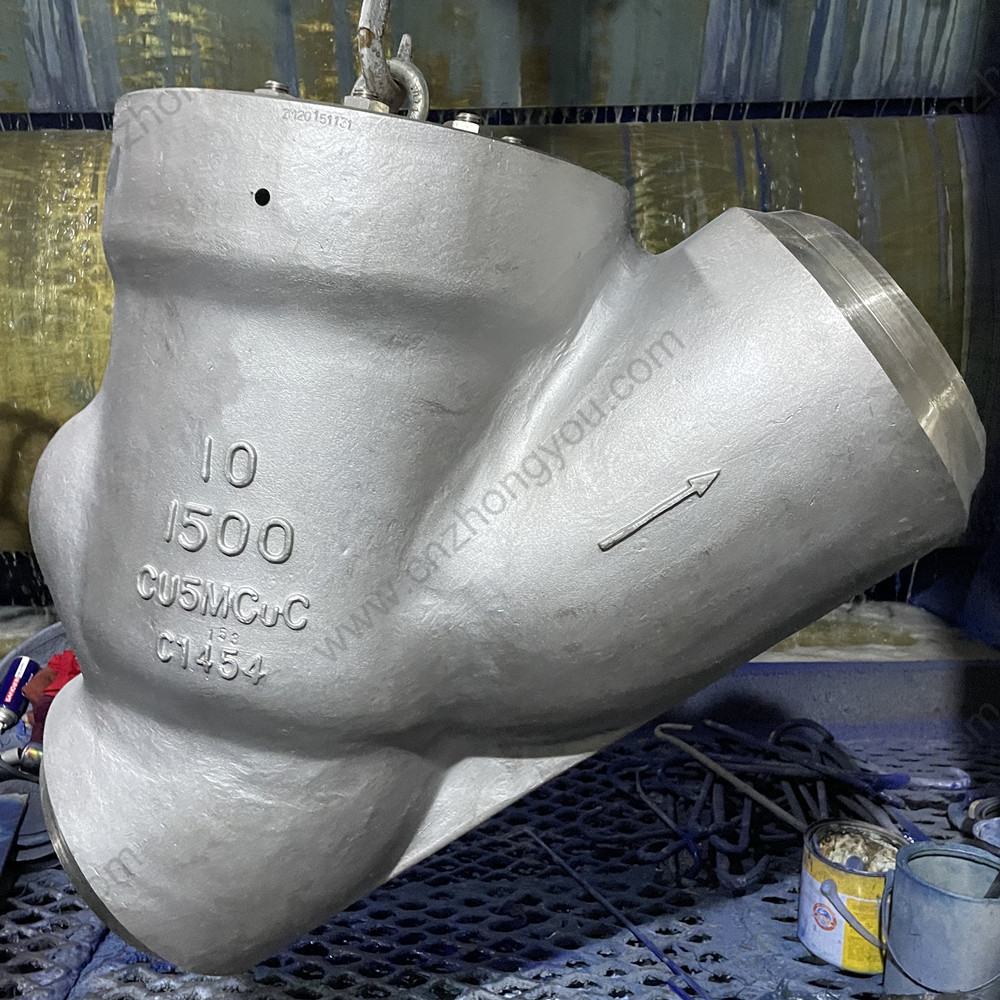

Cu5MCuC Y pattern Tilting Disc Check Valve 10'' 1500LB

Cu5MCuC Y pattern Tilting Disc Check Valve 10'' 1500LB

Type
Cu5MCuC Y pattern Tilting Disc Check Valve 10'' 1500LB
Size
10''
Pressure
1500LB
Body material
Cu5MCuC
Trim material
Cu5MCuC
Connection ends
BW ends

Product Description

Brand:ZYI

Place of Origin:China

Service:OEM&ODM

Packing:inside: Plastic Film, outside: Plywood case


Standards:
1 Design and manufacture: ASME B16.34
2 Face to Face dimension: ASME B16.10
3 BW End
4 Pressure test: API 598


Materials of main parts

No

Part

Matarial

1

Body

Cu5MCuC

2

Seat ring

Cu5MCuC

3

Disc

Cu5MCuC

4

Pin

S.S

5

Nut

ASTM A194 8M

6

Gasket

S.S

7

Hinge

Cu5MCuC

8

Hinge Pin S.S

9

Bolt

ASTM A193 B8M

10

Gasket

316+Graphite

11

Bonnet

Cu5MCuC

12

Bolt

ASTM A193 B8M

13

Nut

ASTM A194 8M

14

Eyescrew

S.S
