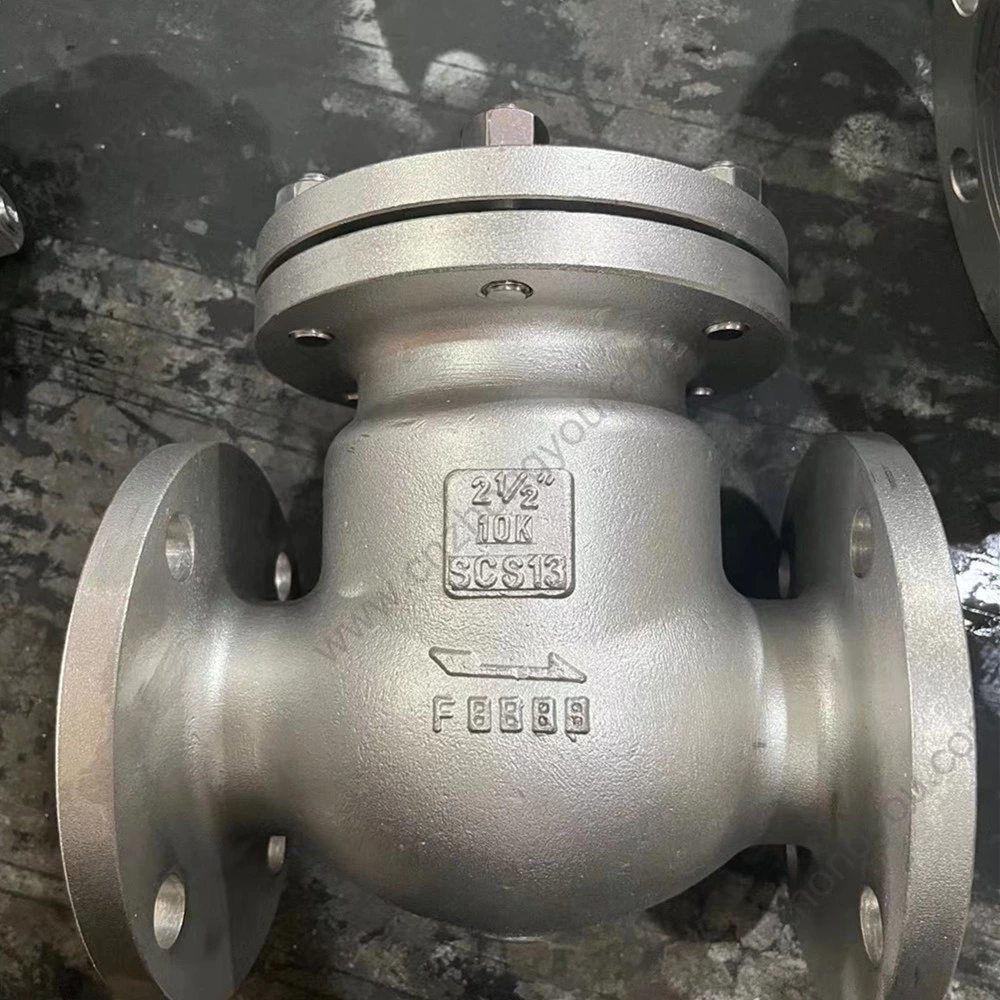

SCS13 Swing Check Valve 2.5'' 10K

SCS13 Swing Check Valve 2.5'' 10K

Type
SCS13 Swing Check Valve 2.5'' 10K
Size
2.5''
Pressure
10K
Body material
SCS13
Trim material
F304
Connection ends
RF ends

Product Description

Brand:ZYI

Place of Origin:China

Service:OEM&ODM

Packing:inside: Plastic Film, outside: Plywood case


Standards:
1 Design and manufacture: ASME B16.34
2 Face to Face dimension: ASME B16.10
3 Flanged End: ASME B16.5   RF
4 Pressure test: API 598


Materials of main parts

No

Part

Matarial

1

Body

ASTM A351 CF8(SCS13)

2

Seat ring

ASTM A351 CF8+STL

3

Disc

ASTM A351 CF8

4

Pin

S.S

5

Nut

ASTM A194 8

6

Gasket

S.S

7

Hinge

ASTM A351 CF8

8

Hinge Pin S.S

9

Bolt

ASTM A193 B8

10

Gasket

304+Graphite

11

Bonnet

ASTM A351 CF8

12

Bolt

ASTM A193 B8

13

Nut

ASTM A194 8

14

Eyescrew

S.S
