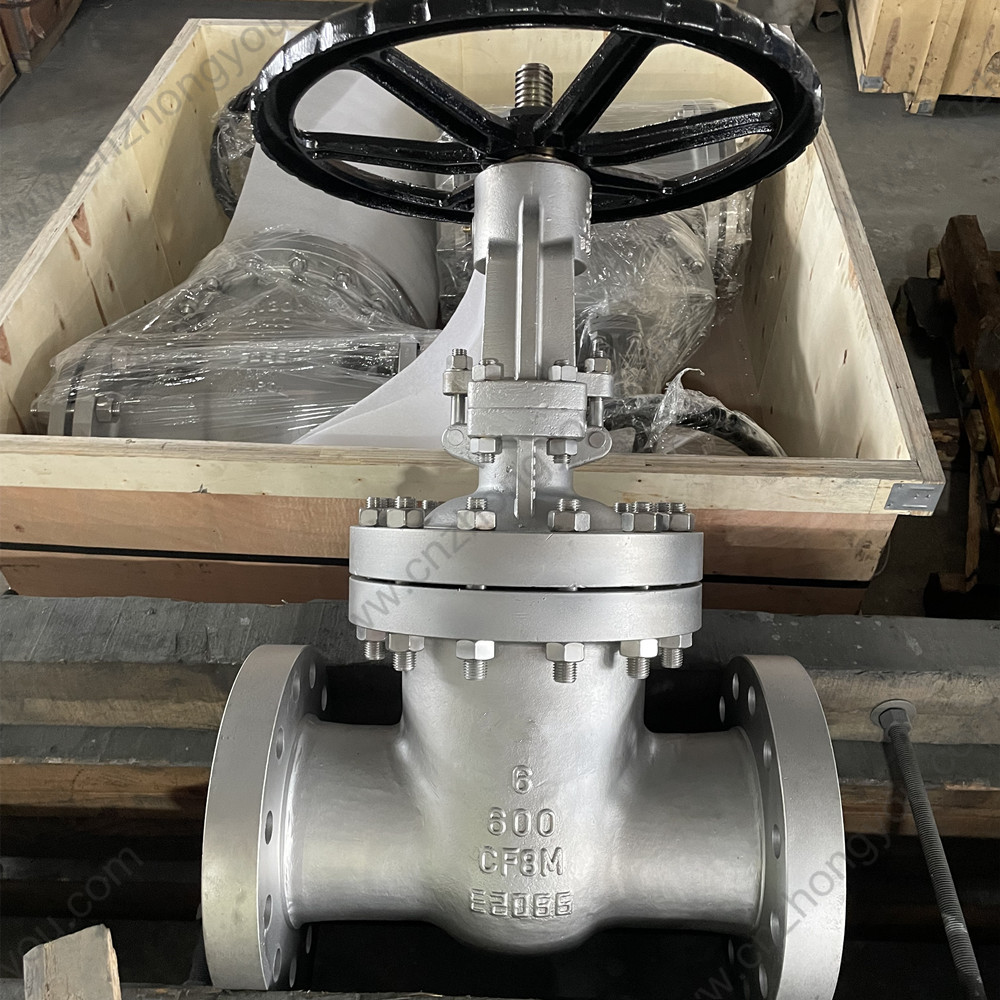

ASTM A351 CF8M gate valve 6'' 600LB
- Type
- ASTM A351 CF8M gate valve 6'' 600LB
- Size
- 6''
- Pressure
- 600LB
- Body material
- 1.4408
- Trim material
- F316
- Connection ends
- RF ends
Product Description
Brand:ZYI
Place of Origin:China
Service:OEM&ODM
Packing:inside: Plastic Film, outside: Plywood case
API Standards:
1 Design and manufacture: API 600
2 Face to Face dimension: ASME B16.10
3 Flanged End: ASTM B16.5 RF
4 Pressure test: API 598
Materials of main parts
|
No |
Part |
Matarial |
|
1 |
Body |
ASTM A351 CF8M(1.4408) |
|
2 |
Seat ring |
ASTM A351 CF8M+STL |
|
3 |
Wedge |
ASTM A351 CF8M |
|
4 |
Stem |
ASTM A182 F316 |
|
5 |
Gasket |
316+Graphite |
|
6 |
Bonnet |
ASTM A351 CF8M |
|
7 |
Stud |
ASTM A193 B8M |
|
8 |
Nut | ASTM A194 8M |
|
9 |
Backseat |
ASTM A351 CF8M |
|
10 |
Stud |
ASTM A193 B8M |
|
11 |
NUT |
ASTM A194 8M |
|
12 |
Yoke |
ASTM A351 CF8M |
|
13 |
Packing |
Graphite |
|
14 |
Pin |
S.S |
|
15 |
Gland Bolt |
ASTM A193 B8M |
|
16 |
Gland Nut |
ASTM A194 8M |
|
17 |
Gland | ASTM A351 CF8M |
