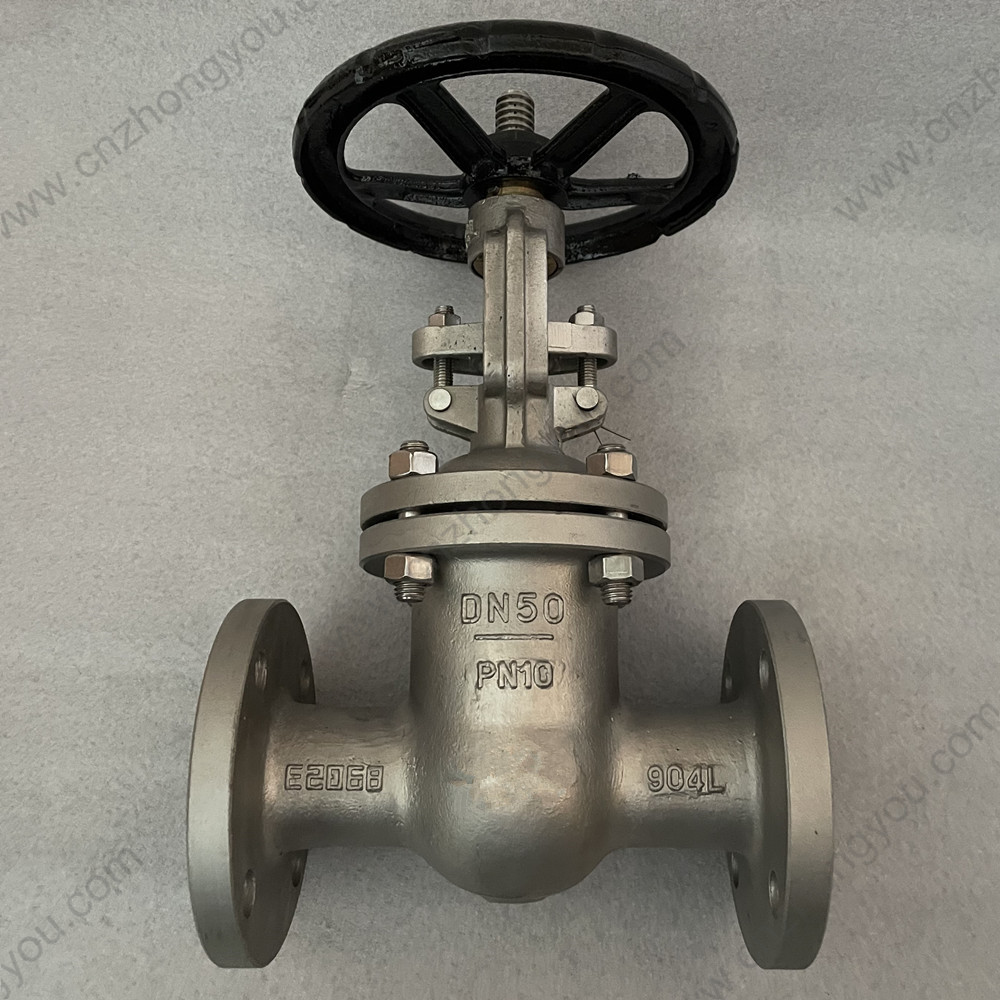

904L DIN gate valve DN50 PN10

904L DIN gate valve DN50 PN10

Type
904L API gate valve DN50 PN10
Size
DN50
Pressure
PN10
Body material
ASTM 904L
Trim material
ASTM 904L
Connection ends
RF ends

Product Description

Brand:ZYI

Place of Origin:China

Service:OEM&ODM

Packing:inside: Plastic Film, outside: Plywood case

DIN Standards:
1 Design and manufacture: DIN 3352
2 Face to Face dimension: DIN 3202
3 Flanged End: EN1092-1   RF,LMF,LFF,LG; GOST 33259 RTJ
4 Pressure test: API 598

Materials of main parts

No

Part

Matarial

1

Body

ASTM 904L

2

Seat ring

ASTM 904L

3

Wedge

ASTM 904L

4

Stem

ASTM 904L

5

Gasket

316+Graphite

6

Bonnet

ASTM 904L

7

Stud

ASTM A193 B8M

8

Nut ASTM A194 8M

9

Backseat

ASTM 904L

10

Stud

ASTM A193 B8M

11

NUT

ASTM A194 8M

12

Yoke

ASTM 904L

13

Packing

Graphite

14

Pin

S.S

15

Gland Bolt

ASTM A193 B8M

16

Gland Nut

ASTM A194 8M

17

Gland ASTM 904L
