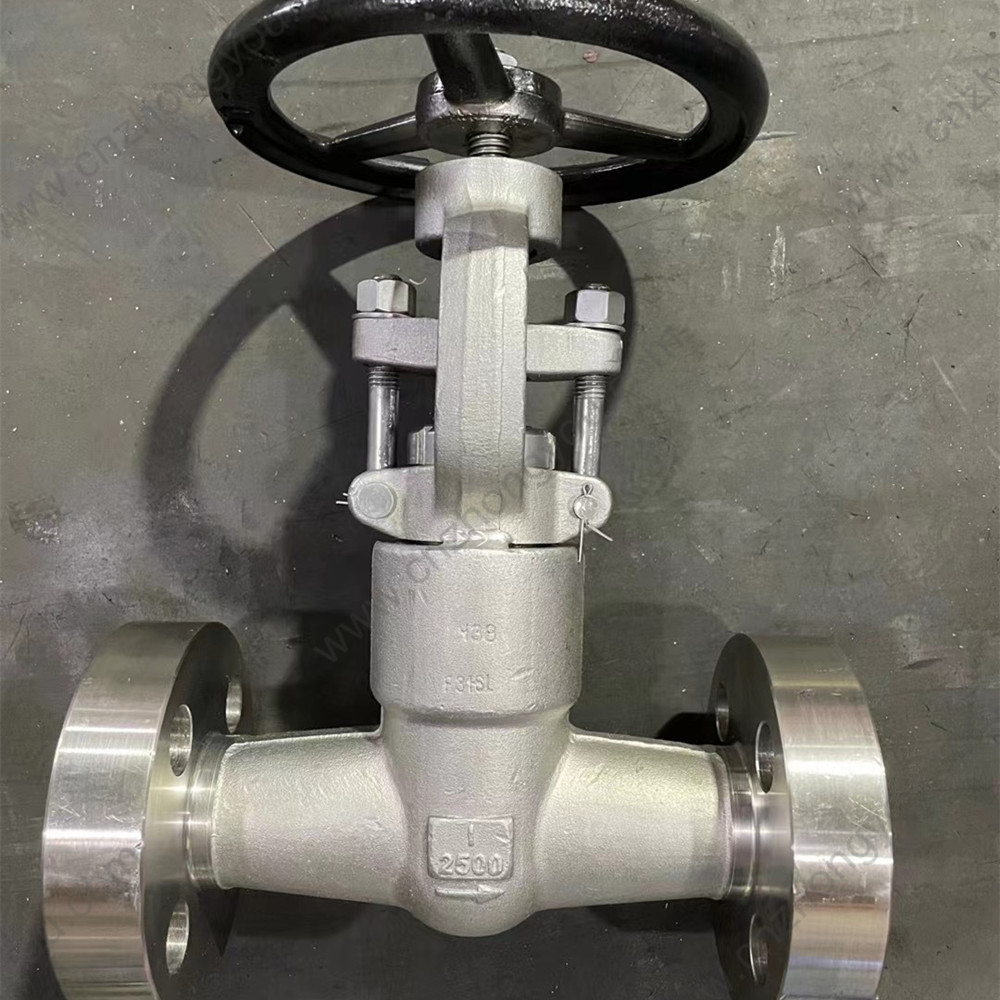

ASTM A182 F316L globe valve 1'' 2500LB

ASTM A182 F316L globe valve 1'' 2500LB

Type
ASTM A182 F316L globe valve 1'' 2500LB
Size
1''
Pressure
2500LB
Body material
ASTM A182 F316L
Trim material
ASTM A182 F316L
Connection ends
RF ends

Product Description

Brand:ZYI

Place of Origin:China

Service:OEM&ODM

Packing:inside: Plastic Film, outside: Plywood case

API Standards:
1 Design and manufacture: API 602
2 Face to Face dimension: ASME B16.10
3 Flanged End: ASTM B16.5   RF
4 Pressure test: API 598

Materials of main parts

No

Part

Matarial

1

Body

ASTM A182 F316L

2

Seat ring

ASTM A182 F316L

3

Disc

ASTM A182 F316L

4

Stem

ASTM A182 F316L

5

Gasket

304+Graphite

6

Bonnet

ASTM A182 F316L

7

Backseat

ASTM A182 F316L

8

Bolt ASTM A193 B8M

9

Packing

Graphite

10

Bushing

ASTM A276 410

11

Gland

ASTM A182 F316L

12

Pin

S.S

13

Gland bolt

ASTM A193 B8M

14

Gland nut

ASTM A194 8M

15

Stem nut

ASTM A276 410

16

Handwheel

KTH330-08

17

H.W.Lock nut ASTM A194 8M
