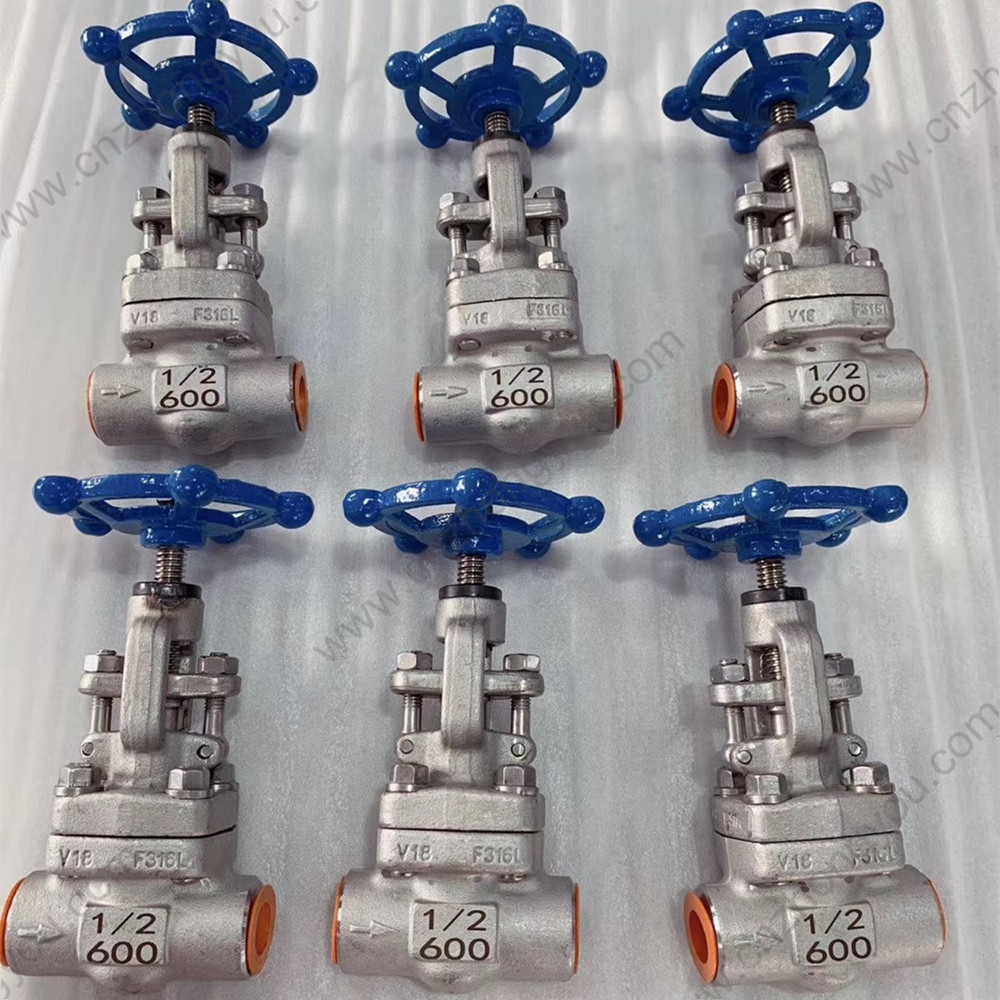

ASTM A182 F316L globe valve 1/2'' 600LB
- Type
- ASTM A182 F316L globe valve 1/2'' 600LB
- Size
- 1/2''
- Pressure
- 600LB
- Body material
- ASTM A182 F316L
- Trim material
- ASTM A182 F316L
- Connection ends
- SW ends
Product Description
Brand:ZYI
Place of Origin:China
Service:OEM&ODM
Packing:inside: Plastic Film, outside: Plywood case
API Standards:
1 Design and manufacture: API 602
2 Face to Face dimension: ASME B16.10
3 SW End
4 Pressure test: API 598
Materials of main parts
|
No |
Part |
Matarial |
|
1 |
Body |
ASTM A182 F316L |
|
2 |
Seat ring |
ASTM A182 F316L |
|
3 |
Disc |
ASTM A182 F316L |
|
4 |
Stem |
ASTM A182 F316L |
|
5 |
Gasket |
304+Graphite |
|
6 |
Bonnet |
ASTM A182 F316L |
|
7 |
Backseat |
ASTM A182 F316L |
|
8 |
Bolt | ASTM A193 B8M |
|
9 |
Packing |
Graphite |
|
10 |
Bushing |
ASTM A276 410 |
|
11 |
Gland |
ASTM A182 F316L |
|
12 |
Pin |
S.S |
|
13 |
Gland bolt |
ASTM A193 B8M |
|
14 |
Gland nut |
ASTM A194 8M |
|
15 |
Stem nut |
ASTM A276 410 |
|
16 |
Handwheel |
KTH330-08 |
|
17 |
H.W.Lock nut | ASTM A194 8M |
