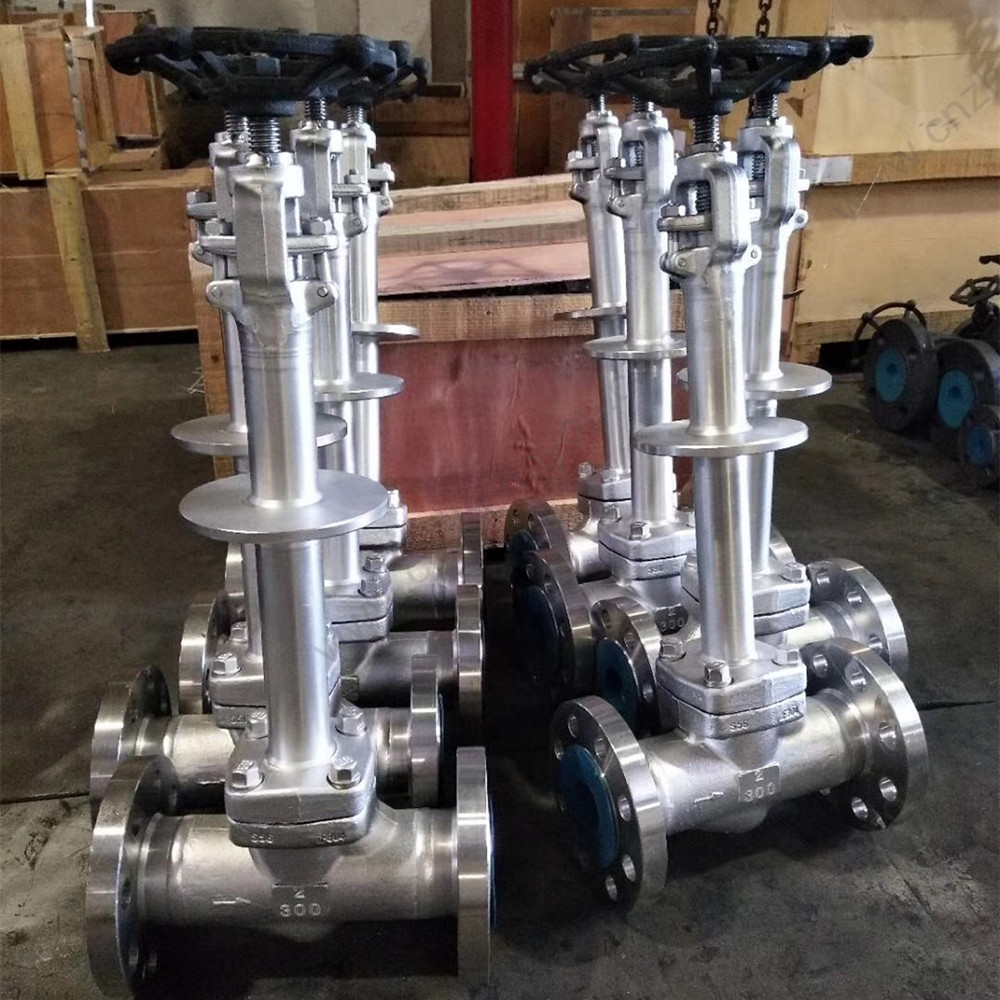

ASTM A182 F304 Extended Stem globe valve 4'' 300LB

ASTM A182 F304 Extended Stem globe valve 4'' 300LB

Type
ASTM A182 F304 Extended Stem globe valve 4'' 300LB
Size
4''
Pressure
300LB
Body material
ASTM A182 F304
Trim material
ASTM A182 F304
Connection ends
RF ends

Product Description

Brand:ZYI

Place of Origin:China

Service:OEM&ODM

Packing:inside: Plastic Film, outside: Plywood case

API Standards:
1 Design and manufacture: API 602
2 Face to Face dimension: ASME B16.10
3 Flanged End: ASTM B16.5   RF
4 Pressure test: API 598

Materials of main parts

No

Part

Matarial

1

Body

ASTM A182 F304

2

Seat ring

ASTM A182 F304

3

Disc

ASTM A182 F304

4

Stem

ASTM A182 F304

5

Gasket

304+Graphite

6

Bonnet

ASTM A182 F304

7

Backseat

ASTM A182 F304

8

Bolt ASTM A193 B8

9

Packing

Graphite

10

Bushing

ASTM A276 410

11

Gland

ASTM A182 F304

12

Pin

S.S

13

Gland bolt

ASTM A193 B8

14

Gland nut

ASTM A194 8

15

Stem nut

ASTM A276 410

16

Handwheel

KTH330-08

17

H.W.Lock nut ASTM A194 8
