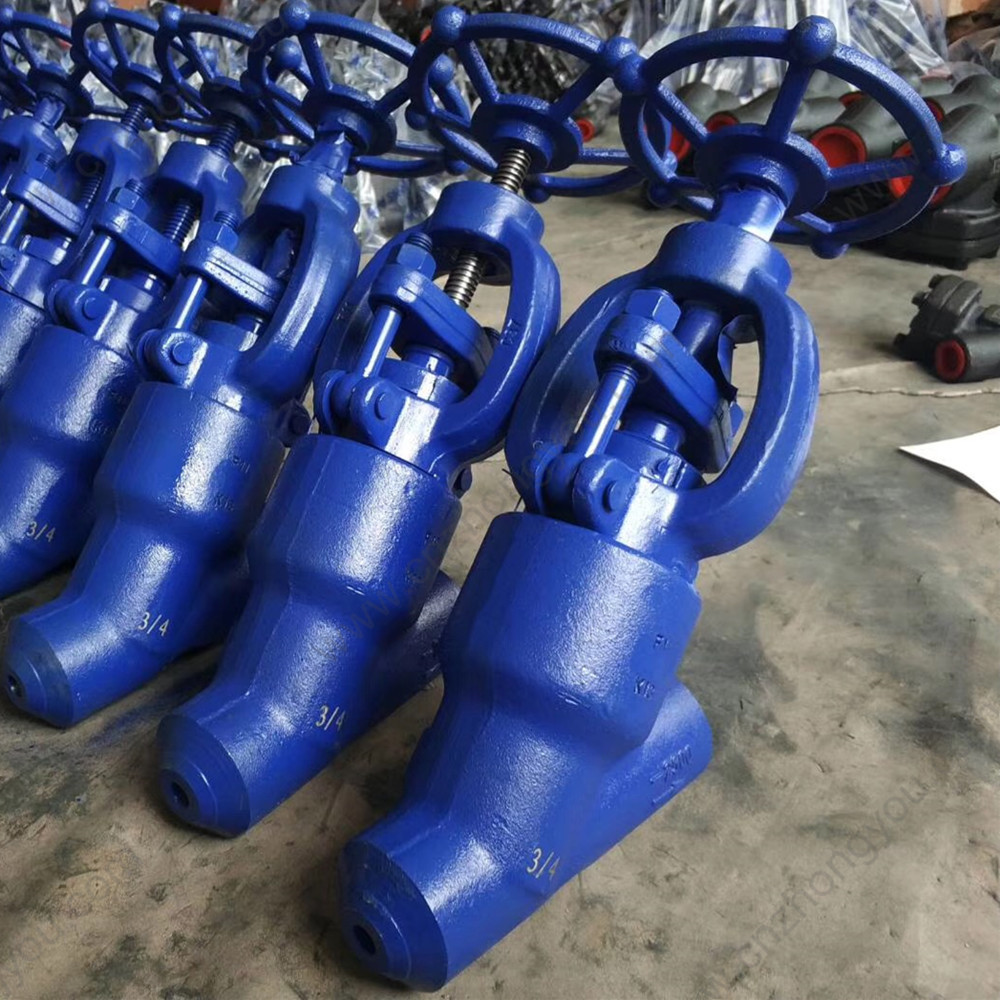

ASTM A182 F11 Y pattern globe valve 3/4'' 2500LB

ASTM A182 F11 Y pattern globe valve 3/4'' 2500LB

Type
ASTM A182 F11 Y pattern globe valve 3/4'' 2500LB
Size
3/4''
Pressure
2500LB
Body material
ASTM A182 F11
Trim material
ASTM A182 F11
Connection ends
BW ends

Product Description

Brand:ZYI

Place of Origin:China

Service:OEM&ODM

Packing:inside: Plastic Film, outside: Plywood case

API Standards:
1 Design and manufacture: API 602
2 Face to Face dimension: ASME B16.10
3 BW End
4 Pressure test: API 598

Materials of main parts

No

Part

Matarial

1

Body

ASTM A182 F11

2

Seat ring

ASTM A182 F11+STL

3

Disc

ASTM A182 F6a+STL

4

Stem

ASTM A182 F6a

5

Gasket

304+Graphite

6

Bonnet

ASTM A182 F11

7

Backseat

ASTM A182 F11

8

Bolt ASTM A193 B16

9

Packing

Graphite

10

Bushing

ASTM A276 410

11

Gland

ASTM A182 F11

12

Pin

S.S

13

Gland bolt

ASTM A193 B16

14

Gland nut

ASTM A194 7

15

Stem nut

ASTM A276 410

16

Handwheel

KTH330-08

17

H.W.Lock nut ASTM A194 7
