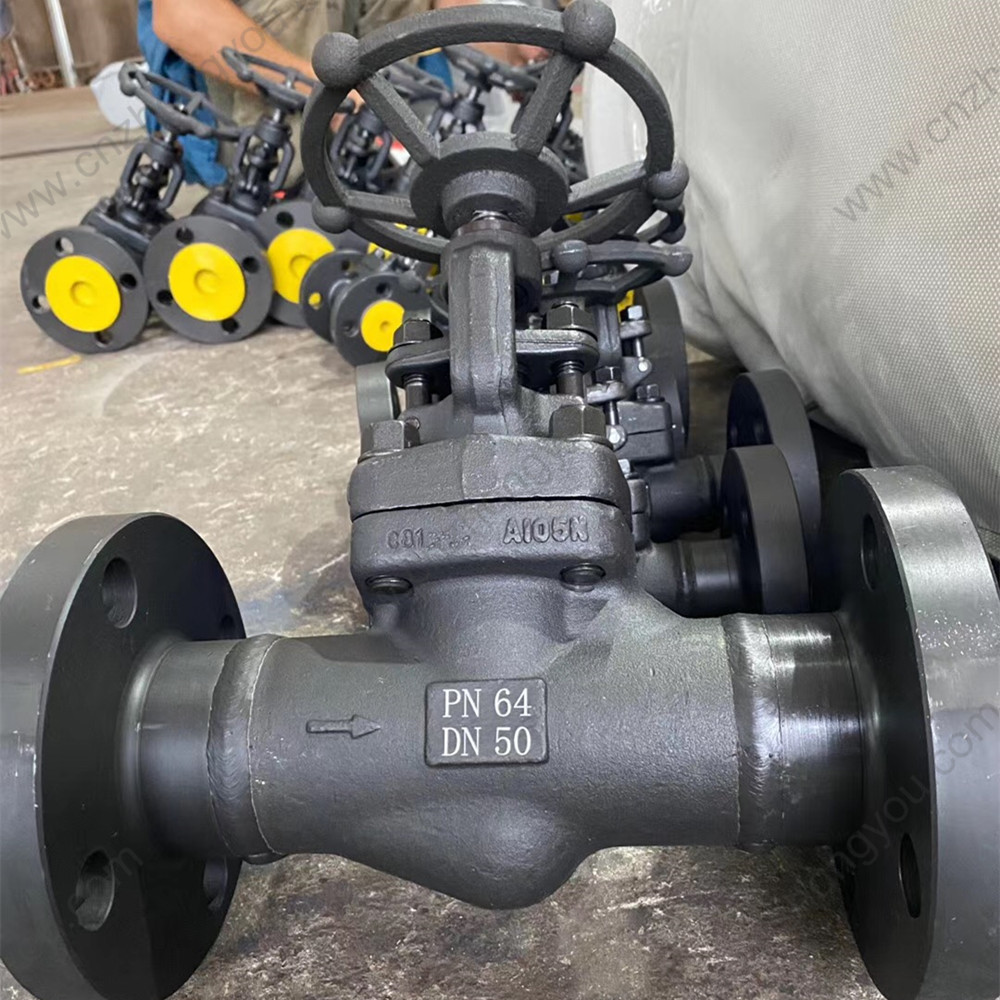

A105 globe valve DN50 PN64

A105 globe valve DN50 PN64

Type
A105 globe valve DN50 PN64
Size
DN50
Pressure
PN64
Body material
ASTM A105
Trim material
ASTM A276 410
Connection ends
RF ends

Product Description

Brand:ZYI

Place of Origin:China

Service:OEM&ODM

Packing:inside: Plastic Film, outside: Plywood case

API Standards:
1 Design and manufacture: API 602
2 Face to Face dimension: ASME B16.10
3 Flanged End: ASTM B16.5   RF
4 Pressure test: API 598

Materials of main parts

No

Part

Matarial

1

Body

ASTM A105

2

Seat ring

ASTM A105+13CR

3

Disc

ASTM A182 F6a

4

Stem

ASTM A182 F6a

5

Gasket

304+Graphite

6

Bonnet

ASTM A105

7

Backseat

ASTM A105

8

Bolt ASTM A193 B7

9

Packing

Graphite

10

Bushing

ASTM A276 410

11

Gland

ASTM A105

12

Pin

S.S

13

Gland bolt

ASTM A193 B7

14

Gland nut

ASTM A194 2H

15

Stem nut

ASTM A276 410

16

Handwheel

KTH330-08

17

H.W.Lock nut ASTM A194 2H
