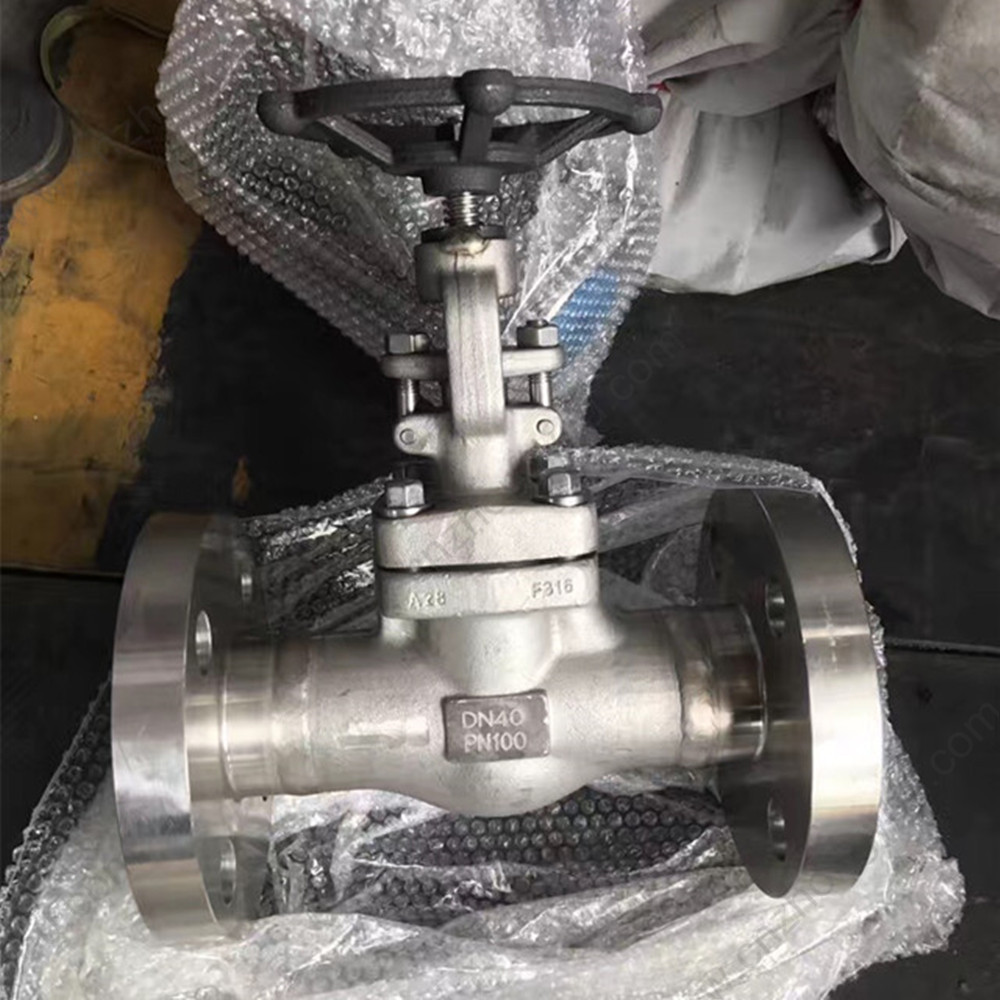

ASTM A182 F316 gate valve DN40 PN100

ASTM A182 F316 gate valve DN40 PN100

Type
ASTM A182 F316 gate valve DN40 PN100
Size
DN40
Pressure
PN100
Body material
ASTM A182 F316
Trim material
ASTM A182 F316
Connection ends
RF ends

Product Description

Brand:ZYI

Place of Origin:China

Service:OEM&ODM

Packing:inside: Plastic Film, outside: Plywood case

API Standards:
1 Design and manufacture: API 602
2 Face to Face dimension: ASME B16.10
3 Flanged End: ASTM B16.5   RF
4 Pressure test: API 598

Materials of main parts

No

Part

Matarial

1

Body

ASTM A182 F316

2

Seat ring

ASTM A182 F316

3

Wedge

ASTM A182 F316

4

Stem

ASTM A182 F316

5

Gasket

304+Graphite

6

Bonnet

ASTM A182 F316

7

Stud

ASTM A193 B8M

8

Packing Graphite

9

Bushing

C.S

10

Gland

ASTM A182 F316

11

Pin

ASTM A182 F316

12

Gland bolt

ASTM A193 B8M

13

Gland nut

ASTM A194 8M

14

Stem Nut

ASTM A194 8M

15

Gasket

C.S

16

Handwheel

ASTM A197

17

H.W.Lock nut C.S
