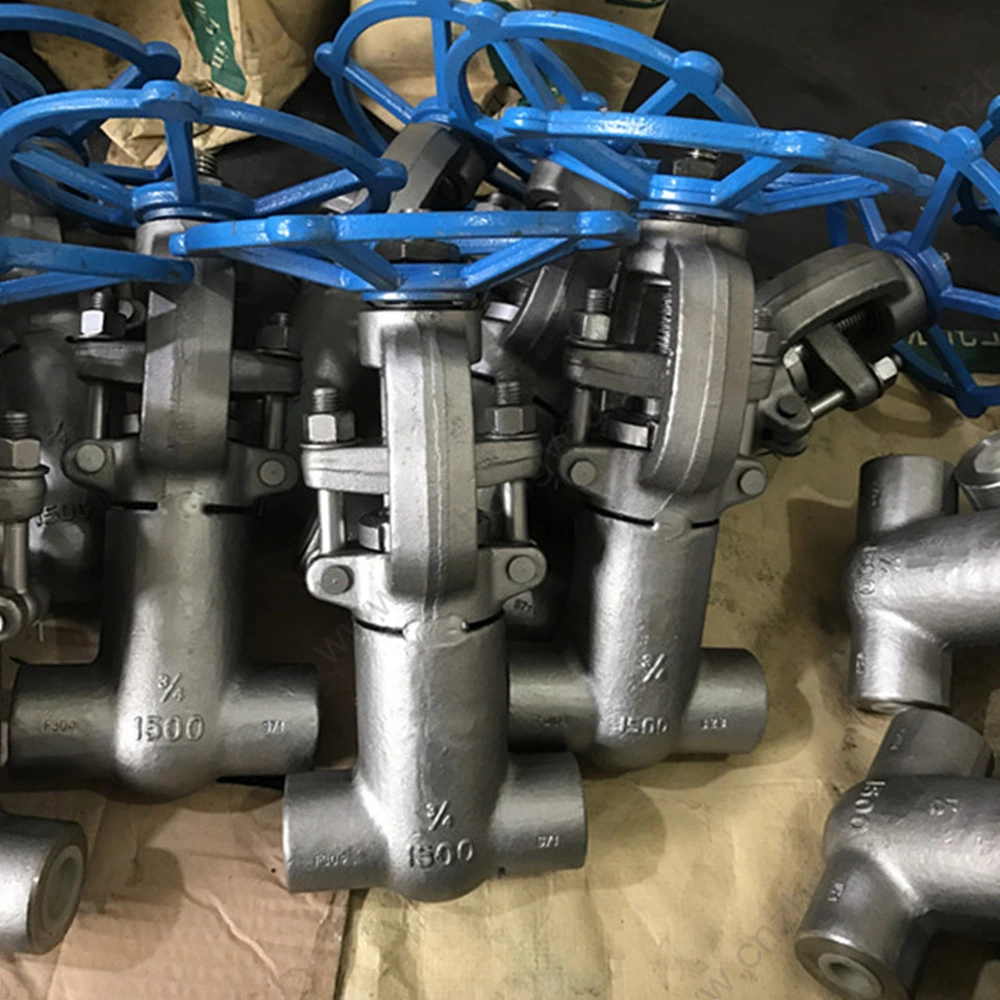

ASTM A182 F304 gate valve DN20 1500LB

ASTM A182 F304 gate valve DN20 1500LB

Type
ASTM A182 F304 gate valve DN20 1500LB
Size
DN20
Pressure
1500LB
Body material
ASTM A182 F304
Trim material
ASTM A182 F304
Connection ends
SW ends

Product Description

Brand:ZYI

Place of Origin:China

Service:OEM&ODM

Packing:inside: Plastic Film, outside: Plywood case

API Standards:
1 Design and manufacture: API 602
2 Face to Face dimension: ASME B16.10
3 SW End
4 Pressure test: API 598

Materials of main parts

No

Part

Matarial

1

Body

ASTM A182 F304

2

Seat ring

ASTM A182 F304

3

Wedge

ASTM A182 F304

4

Stem

ASTM A182 F304

5

Gasket

304+Graphite

6

Bonnet

ASTM A182 F304

7

Stud

ASTM A193 B8

8

Packing Graphite

9

Bushing

C.S

10

Gland

ASTM A182 F304

11

Pin

ASTM A182 F304

12

Gland bolt

ASTM A193 B8

13

Gland nut

ASTM A194 8

14

Stem Nut

ASTM A194 8

15

Gasket

C.S

16

Handwheel

ASTM A197

17

H.W.Lock nut C.S
