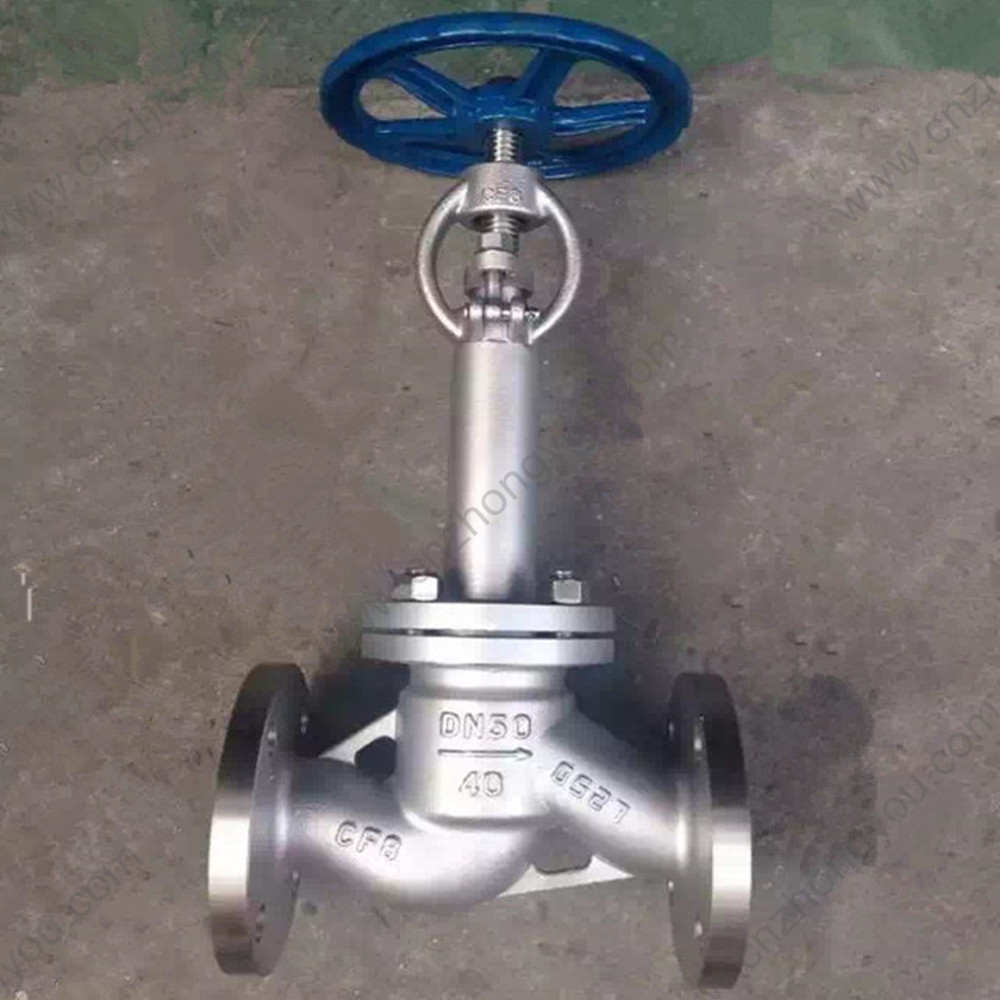

CF8 Extended Stem globe valve DN50 PN40

CF8 Extended Stem globe valve DN50 PN40

Type
CF8 Extended Stem globe valve DN50 PN40
Size
DN50
Pressure
PN40
Body material
CF8
Trim material
F304
Connection ends
RF ends

Product Description

Brand:ZYI

Place of Origin:China

Service:OEM&ODM

Packing:inside: Plastic Film, outside: Plywood case

Standards:
1 Design and manufacture: DIN 3356
2 Face to Face dimension: DIN 3202
3 Flanged End: EN1092-1   RF
4 Pressure test: API 598

Materials of main parts

No

Part

Matarial

1

Body

ASTM A351 CF8

2

Seat ring

ASTM A351 CF8+STL

3

Disc

ASTM A351 CF8

4

Split ring

S.S

5

Disc cover

S,S

6

Stem

ASTM A182 F304

7

Gasket

304+Graphite

8

Bonnet ASTM A351 CF8

9

Stud

ASTM A193 B8

10

Nut

ASTM A194 8

11

Backseat

ASTM A351 CF8

12

Packing

Graphite

13

Gland

ASTM A351 CF8

14

Pin

S.S

15

Gland Bolt

ASTM A193 B8

16

Gland Nut

ASTM A194 8

17

Stem nut Bronze
