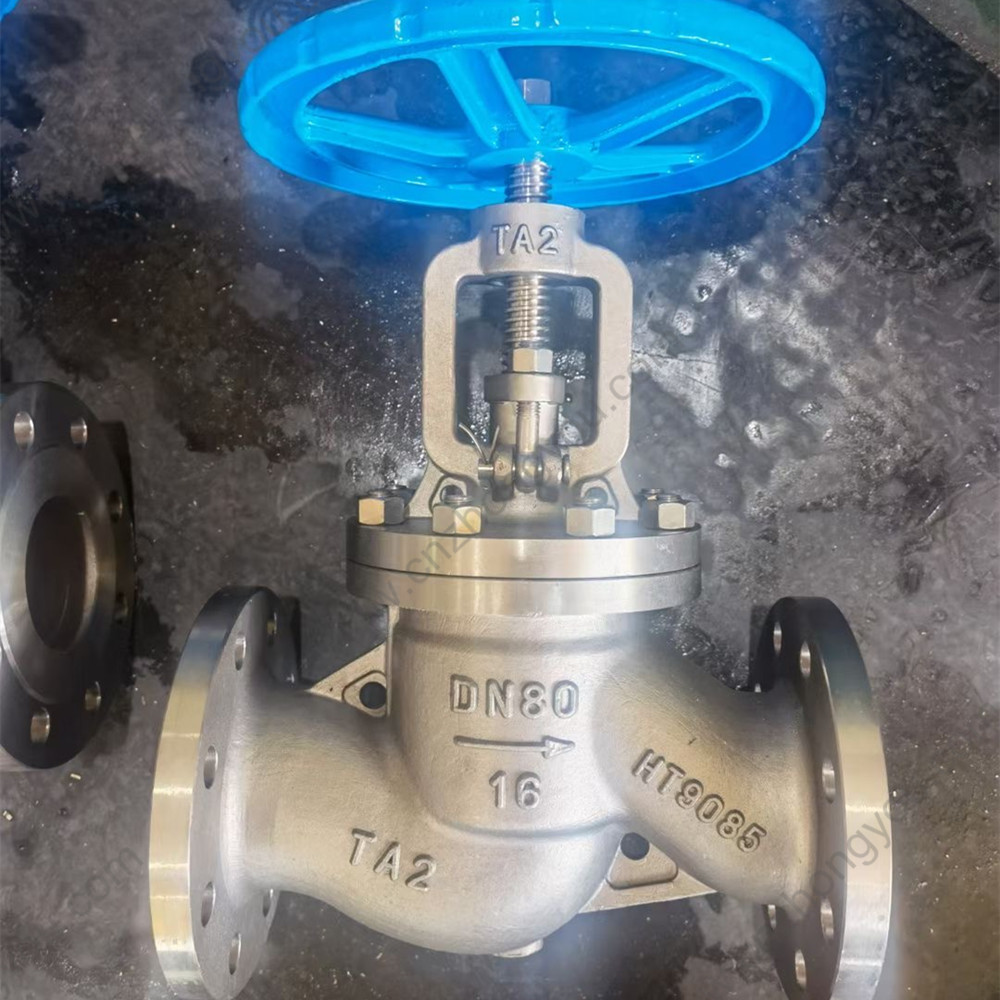

TA2 globe valve DN80 PN16

TA2 globe valve DN80 PN16

Type
TA2 globe valve DN80 PN16
Size
DN80
Pressure
PN16
Body material
ASTM TA2
Trim material
ASTM TA2
Connection ends
RF ends

Product Description

Brand:ZYI

Place of Origin:China

Service:OEM&ODM

Packing:inside: Plastic Film, outside: Plywood case

Standards
1 Design and manufacture: DIN 3356
2 Face to Face dimension: DIN 3202
3 Flanged End: EN1092-1   RF
4 Pressure test: API 598


Materials of main parts

No

Part

Matarial

1

Body

ASTM TA2

2

Seat ring

ASTM TA2

3

Disc

ASTM TA2

4

Split ring

S.S

5

Disc cover

S,S

6

Stem

ASTM TA2

7

Gasket

316+Graphite

8

Bonnet ASTM TA2

9

Stud

ASTM A193 B8M

10

Nut

ASTM A194 8M

11

Backseat

ASTM TA2

12

Packing

Graphite

13

Gland

ASTM TA2

14

Pin

S.S

15

Gland Bolt

ASTM A193 B8M

16

Gland Nut

ASTM A194 8M

17

Stem nut Bronze
